Slugging / Bolus Tablet Press- GMP
Heavy Duty Single Sided Veterinary Bolus & Slugging Rotary Tablet Press

Application & Process :

Bolus Tablet Press Machine is used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries.

PTCM-SH-12 is single sided rotary slugging press with square body and suitable for small batch size production of bolus for veterinary and slugging of powder. This is a single side rotary slugging GMP/ Standard model with rigid design, precise and simple bolus tablet compression machine. It is heavy duty tablet press to take more press during compression. The PTCM-SH-12 model machine is designed to enable to maximum cleanliness in operation and accessibility, thus offering tremendous easy to operate, clean and maintenance. The PTCM-SH-12 Tablet press is offered in different two models GMP & Standard Viz. Special Tooling

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection & Ease to Maintenance.
  • Specially designed for pharmaceutical, veterinary, bolus, slugs, pellets, chemicals, plastic, ceramics, powder metals and other specialized industries.
  • A Heavy Duty robust construction with square tubular design.
  • Meets the requirements for capacity, precision, control, maintenance, safety and reliability.
  • Maximum resistance to wear and tear.
  • Overload pressure release mechanism – spring mechanism.
  • Central oil lubrication system with hand pump.
  • All controls outside the machine.

Safety Features :

  • Interlocked upper guard and Overload relay protection.
  • Overload pressure release mechanism.
  • Emergency stop button.
Technical Specification :
MODEL
PTCM-SH-12
PTCM-SH-12
No. of Station
12
12
Type of Tooling
Special
Special
Output/Hour
10,800 and 15,800
10,800 and 15,800
Max. Operating pressure
12 Tons
12 Tons
Max. Tablet Diameter
28
40
Max tablet thickness
11 /14 mm
11 /14 mm
Max depth of fill
20 / 30 mm
20 / 30 mm
Main Electric Motor
3 HP / 2.25 kW
5 HP / 3.75 kW

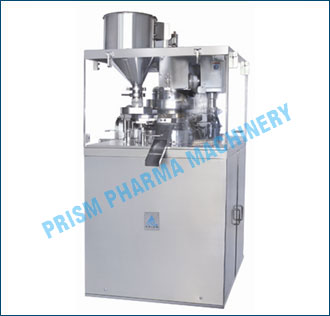

PTCM-SH-12 Station Slugging Tablet Press – GMP

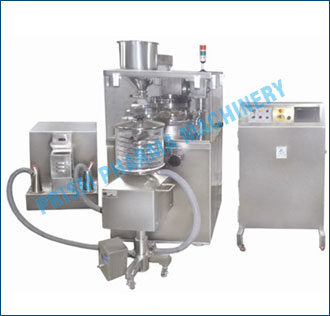

PTCM-SH-12 Station Slugging Tablet Press with Deduster & Dust Extractor
PTCM-SH-12 Station Slugging Tablet Press - GMP
PTCM-SH-12 Station Slugging Tablet Press with Deduster &Dust Extractor
