Tablet Press-PTCMB3
Double Sided Rotary Tablet Press – STANDARD Model

Application & Process :

PTCMB3 Double Sided Rotary Tablet Press Machine is standard and used for production of simple and precise tablets from powder in Pharmaceutical, Ceramics, Herbals and relevant Industries.

PTCMB3 is double sided rotary tableting machine with painted round body and suitable for medium batch size.. This is double side rotary tableting standard model with rigid design, precise and simple tablet compression machine. The PTCMB3 model machine is designed to enable to maximum cleanliness in operation and accessibility, thus offering tremendous easy to operate, clean and maintenance. The PTCMB3 Tablet press is offered in different three model Viz. Tooling “D”, “B” & “B” Tooling.

Salient Features :

  • Standard model.
  • All contact parts AISI 304/316.
  • Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection.
  • Suitable for medium batch production.
  • Robust with high quality engineering with round shape body structure
  • Turret made from S.G. Iron steel casting.
  • Variable speed pulley to adjust desired speed.
  • Overload pressure release mechanism.
  • Central lubrication system with head pump.
  • Rigid feed frame.
  • Ease to Maintenance

Optional Features :

  • 3 pc Turret with M.S./ S.S. Depot.
  • AC Frequency Drive variable speed drive.
  • Two layer tablet attachment.

Safety Features :

  • Overload protection.
Technical Specification :
No. of Station
Type of Tooling
46,000 to 96,000
63,000 to 120,000
81,000 to 160,000
Max. Operating pressure
10 Tons
6.5 Tons
6.5 Tons
Max. Tablet Diameter
25 mm
16 mm
11 mm
Max depth of fill
19 mm
17.5 mm
17.5 mm
Main Electric Motor
5 HP / 3.7 kW
3 HP / 2.25 kW
3 HP / 2.25 kW

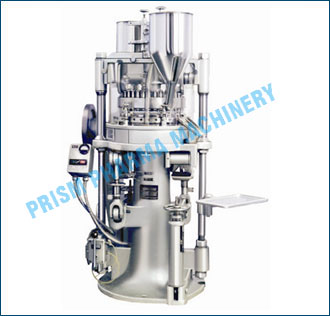

PTCMB3-27/35/45 Station Tablet Press

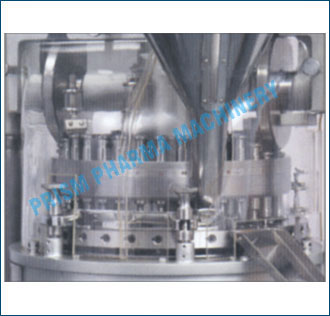

Turret & Feed Frame
PTCMB3-27/35/45 Station Tablet Press
Turret &Feed Frame

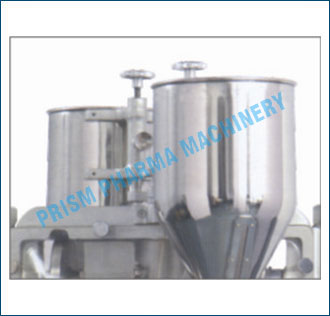

Powder Hopper
Weight Dozer Assembly
Powder Hopper
Weight Dozer Assembly
Lubrication Pump

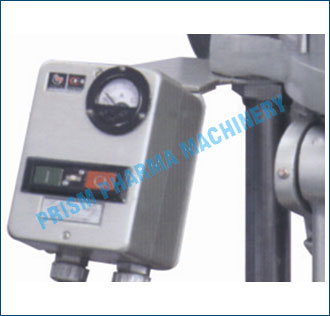

Electric Controls
Lubrication Pump
Electric Controls
