Comminuting Mill
High Speed Milling & Pulverizing Process

Application & Process :

Comminuting mill is used for the down sizing, milling, pulverization and dispersion of wet and dry products in pharmaceutical, chemical, food, cosmetics, fertilizers industry etc.

The product is poured from the top through in feed hopper and material falls on the rotor blades beater assembly for milling or pulverization. Due to the knife edges mounted on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening. Knife edges can be removed for cleaning very easily.

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance
  • All Product contact parts AISI 316/ 316L & non contact parts AISI 304.
  • High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material..
  • Easy and simple to change knife to impact forward vice-versa by reversible chamber.
  • Dynamic balanced beater assembly bearings are in a separate pillow block at outside chamber.
  • Wide range of sieve of perforated and wire-mesh.
  • Fitted on castor wheels for easy mobility

Optional Features :

  • Jacketing chamber for water cooling.
  • AC frequency drive for variable speed,
  • Explosion proof motor and push button,
  • Fixed / swing type beater assembly
  • Uniform feeding system with feeder screw with variable drive..

Safety Features :

  • Interlocked throat hopper and belt guard & Over load relay protection.
PCMM – 16
PCMM – 32
Output Speed
50 to 800 kg (Depends on product, speed and sieve size)
Up to 2000 kg (Depends on product, speed and sieve size)
Fixed / swinging type with knife and input edge
16 Nos.
32 Nos.
Rotor Speed
1000 / 2200 / 4400 RPM
1000 / 2200 / 4400 RPM
Screen Area
495 mm X 135 mm
495 mm X 270 mm
Electric Motor
7.5 HP / 5.5 kW/3 ph A.C
15 HP / 11 kW/ 3 ph / AC

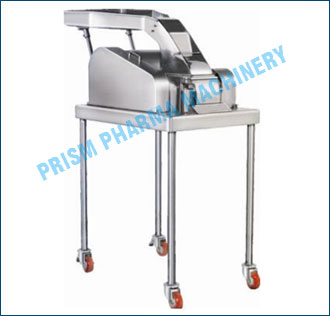

Comminuting Mill-16 Blade

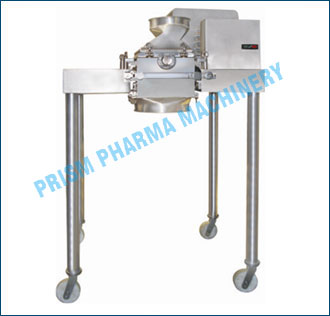

Comminuting Mill-32 Blade
Comminuting Mill-16 Blade Comminuting Mill-32 Blade

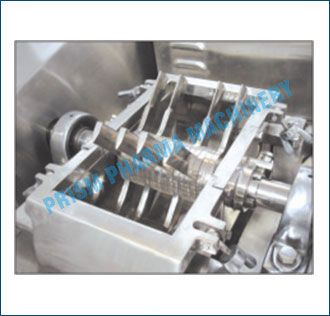

Chamber with Fixed Blade

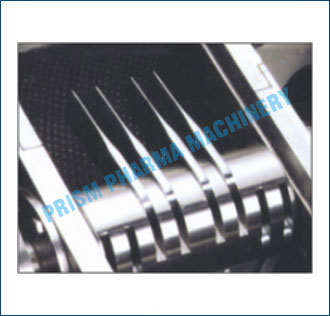

Chamber with Swing Blade
Chamber with Fixed Blade Chamber with Swing Blade
