Single Rotary Tablet Press – PTCMD3
Single Sided Rotary Tablet Press – STANDARD Model

Application & Process :

PTCMD3-Single Sided Rotary Tablet Press Machine is standard model machine and used for production of simple and precise tablets from powder in Pharmaceutical and relevant Industries.

PTCM-D3 is single sided rotary tableting machine with painted round body and suitable for small batch size. This is a single side rotary tableting standard model with rigid design, precise and simple tablet compression machine. The PTCM-D3 model machine is designed to enable to maximum cleanliness in operation and accessibility, thus offering tremendous easy to operate, clean and maintenance. The PTCM-D3 Tablet press is offered in different two model Viz. Tooling “D” & “DB” Tooling.

Salient Features :

  • Non GMP – Standard model.
  • All contact parts AISI 304.
  • Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection.
  • Suitable for medium batch production.
  • Robust with high quality engineering with round shape body structure.
  • Turret made from S.G. Iron steel casting.
  • Variable speed pulley to adjust desired speed.
  • Overload pressure release mechanism.
  • Central lubrication system with head pump.
  • Rigid feed frame.
  • Ease to Maintenance

Optional Features :

  • 3 pc Turret with M.S./ S.S. Depot.
  • AC Frequency Drive variable speed drive.

Safety Features :

  • Overload protection.
Technical Specification :
No. of Station
Type of Tooling
15,600 to 28,000
22,250 to 41,400
Max. Operating pressure
10 Tons
10 Tons
Max. Tablet Diameter
25 mm
16 mm
Max depth of fill
20 mm
20 mm
Main Electric Motor
2 HP / 1.5 kW
2 HP / 1.5 kW

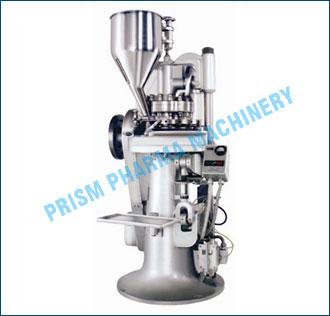

PTCMD3-16/23 Station Tablet Press

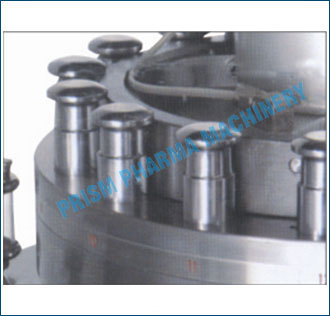

Turret & Upper Punch
PTCMD3-16/23 Station Tablet Press
Turret &Upper Punch

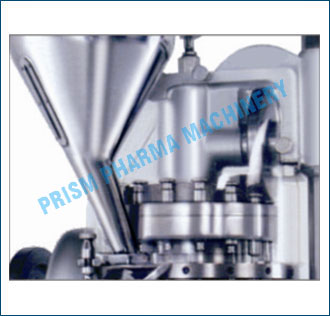

Turret & Powder Feed Frame & Hopper

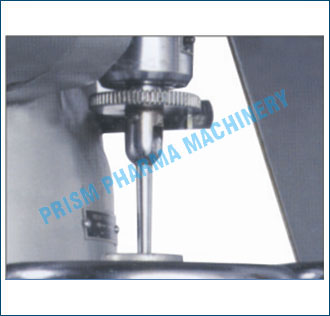

Weight Dozer Assembly
Turret &Powder Feed Frame &Hopper
Weight Dozer Assembly

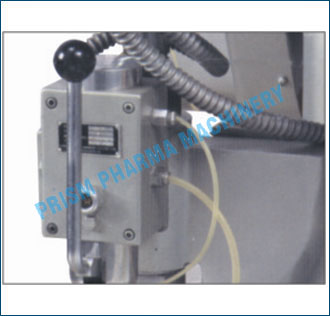

Lubrication Pump
Lubrication Pump
