Conventional Coating Machine- Tablet Sugar & Film Coating
Conventional Tablet Coating Technic – Sugar & Film

CONVENTIONAL COATING : Pan Size: 24”/30”/36”/42”/48”/60”

Application & Process :

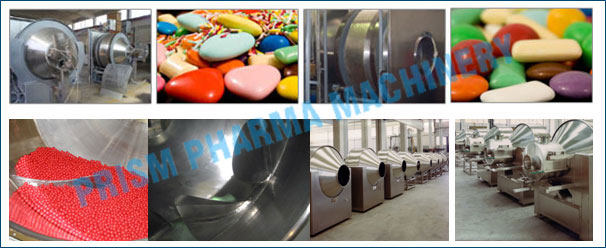

Conventional coating machine are used to sugar coat tablets, pills, etc in for a variety of industries such as Pharmaceutical, Confectionery, Food and others. They are also used for rolling and heating beans and edible nuts or seeds.

The product is to be filled inside the pan. During the rotation motion, coating material is sprayed by spraying system according to the technological process and rational technological process. So process materials (product) are coated due to rotating pan. The coating round pot is rotated by variable speed. At the same time hot air is supplied through inbuilt Hot air blower system which dries rapidly (heating or cooling) and evenly thus forming a solid and smooth surface.

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316/304 & non contact parts AISI 304.
  • Conventional coating system for manual film coating and sugar coating.
  • Machine is designed with fabricated structure fitted with SS enclosure which makes simple, cleanable outside covering and mounted on anti vibration pad.
  • Closed powerful pan drive with reduction gearbox and motor by variable speed pulley.
  • Movable hot air blowing system with electric heater.
  • Easy to replace polishing pan and other size coating pan.

Optional Features :

  • A.C. frequency Drive for pan.
  • Fixed or detachable type baffles.
  • Interchange different size Pan & Polishing Pan
  • Atomized Spraying system with Spray Gun, Peristaltic Pump and Solution tank and Electro Pneumatic controls.
  • Pressurized vessel with spray gun.
  • Flame Proof Electrical.
  • Pellegrini type Coating machine.

Safety Features :

  • Overload pressure release mechanism.
Technical Specification :
MODEL
PCP-24
PCP-30
PCP 36
PCP-42
PCP-48
PCP-60
Pan Size
24 “
30 “
36”
42”
48”
60”
Loading Capacity in Kg
15
45
80
100
150
210
Pan Angle
30º
30º
30º
30º
30º
30º
Pan RPM

Pan motor HP
Please contact us for more details.
Blower motor HP
Blower capacity CFM

Heater Capacity in Kw

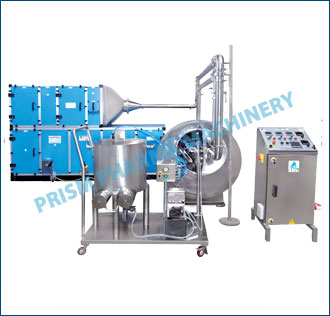

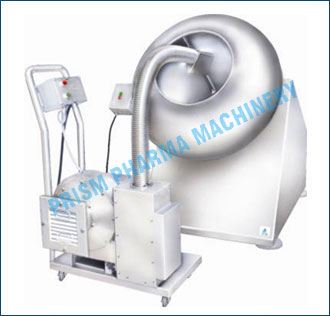

Conventional Coating Machine with Hot Air Blower

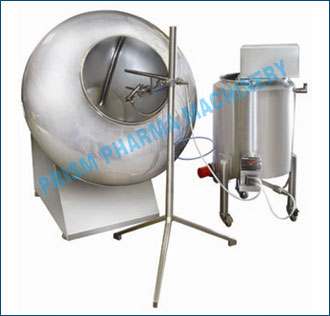

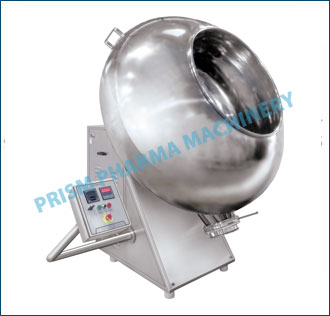

Conventional Coating Machine with Spraying System
Conventional Coating Machine with Hot Air Blower
Conventional Coating Machine with Spraying System

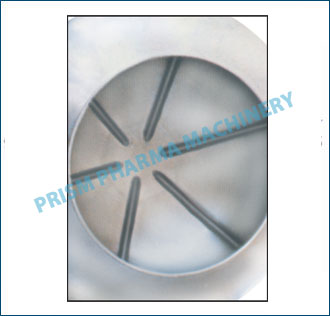

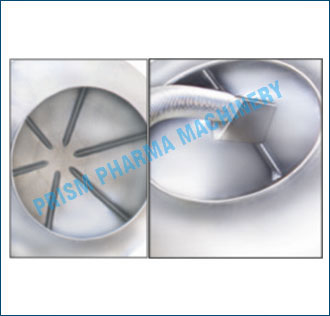

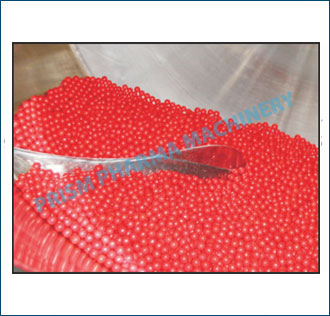

Conventional Coating Pan with Baffles

Conventional Coating Pan with Baffles Conventional Coating Pan with Baffles

Conventional Coating Pan with Baffles Conventional Coating Pan with Baffles

Conventional Coating Pan with Baffles Conventional Coating Pan with Baffles

Conventional Coating Pan with Baffles Conventional Coating Pan with Baffles

Conventional Coating Pan with Baffles

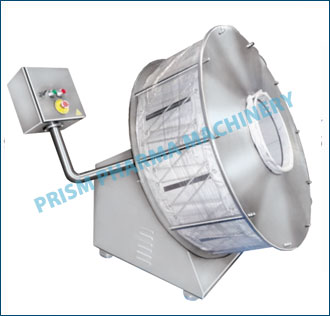

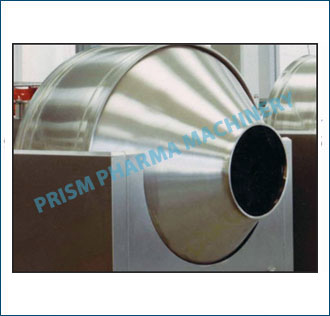

Pellegrini Coating Pan Machine
Pellegrini Coating Pan Machine
